LAUNCHING AWS INFRASTRUCTURE USING TERRAFORM
STEPS:
1. Create the key and security group which allow the port 80.

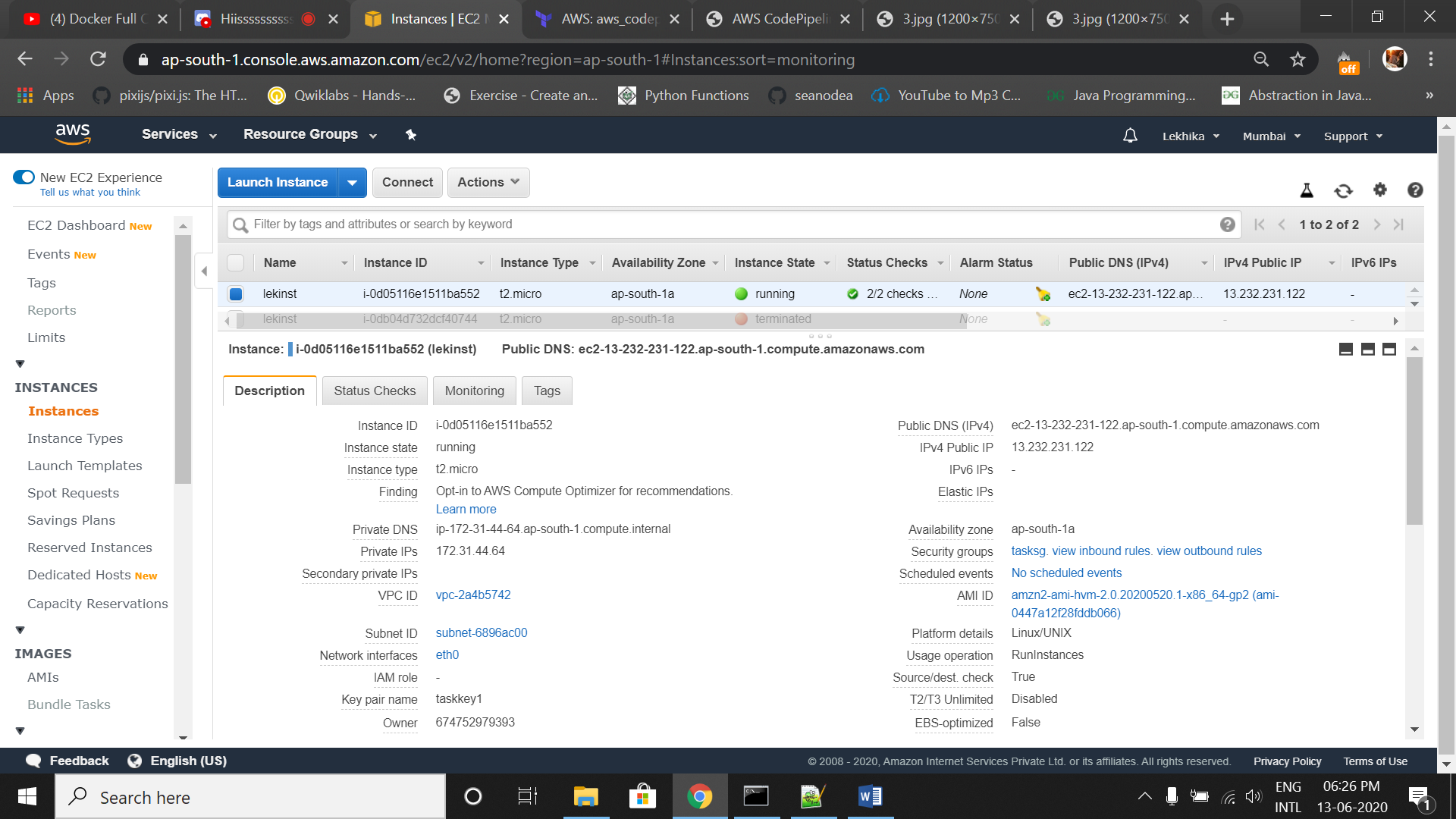

2. Launch EC2 instance.
3. In this Ec2 instance use the key and security group which we have created in step 1.
---------------------------------selecting our region for instance---------------
provider "aws" {
region = "ap-south-1"
profile = "lekhika"
}
#———————————–creating key———————————-
resource "aws_key_pair" "taskkey1" {
key_name = "taskkey1"
}

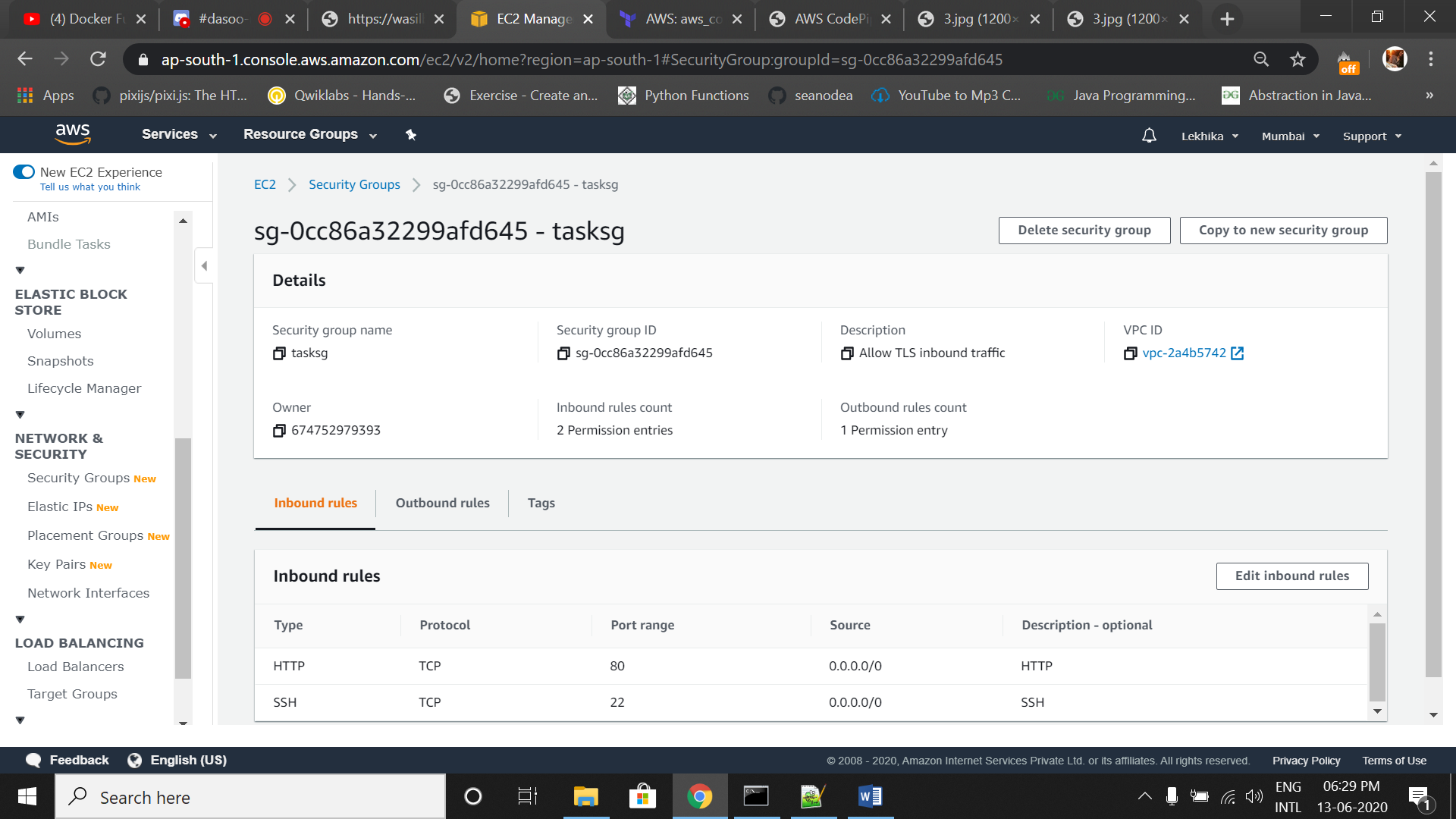

#———————————-creating security group————————
resource "aws_security_group" "tasksg" {
name = "tasksg"
description = "Allow TLS inbound traffic"
vpc_id = "vpc-2a4b5742"
ingress {
}
ingress {
egress {
}
}
4. Launch one Volume (EBS) and mount that volume into /var/www/html
#------------------------------------------launching ebs volume-------------------
resource "aws_ebs_volume" "taskebs" {
availability_zone = "ap-south-1a"
size = 1
tags = {
Name = "taskebs"
}
}
resource "aws_volume_attachment" "taskattach" {
device_name = "/dev/sdf"
volume_id = "${aws_ebs_volume.taskebs.id}"
instance_id = "${aws_instance.lekinst.id}"
}
5. Developer have uploded the code into github repo also the repo has some images.

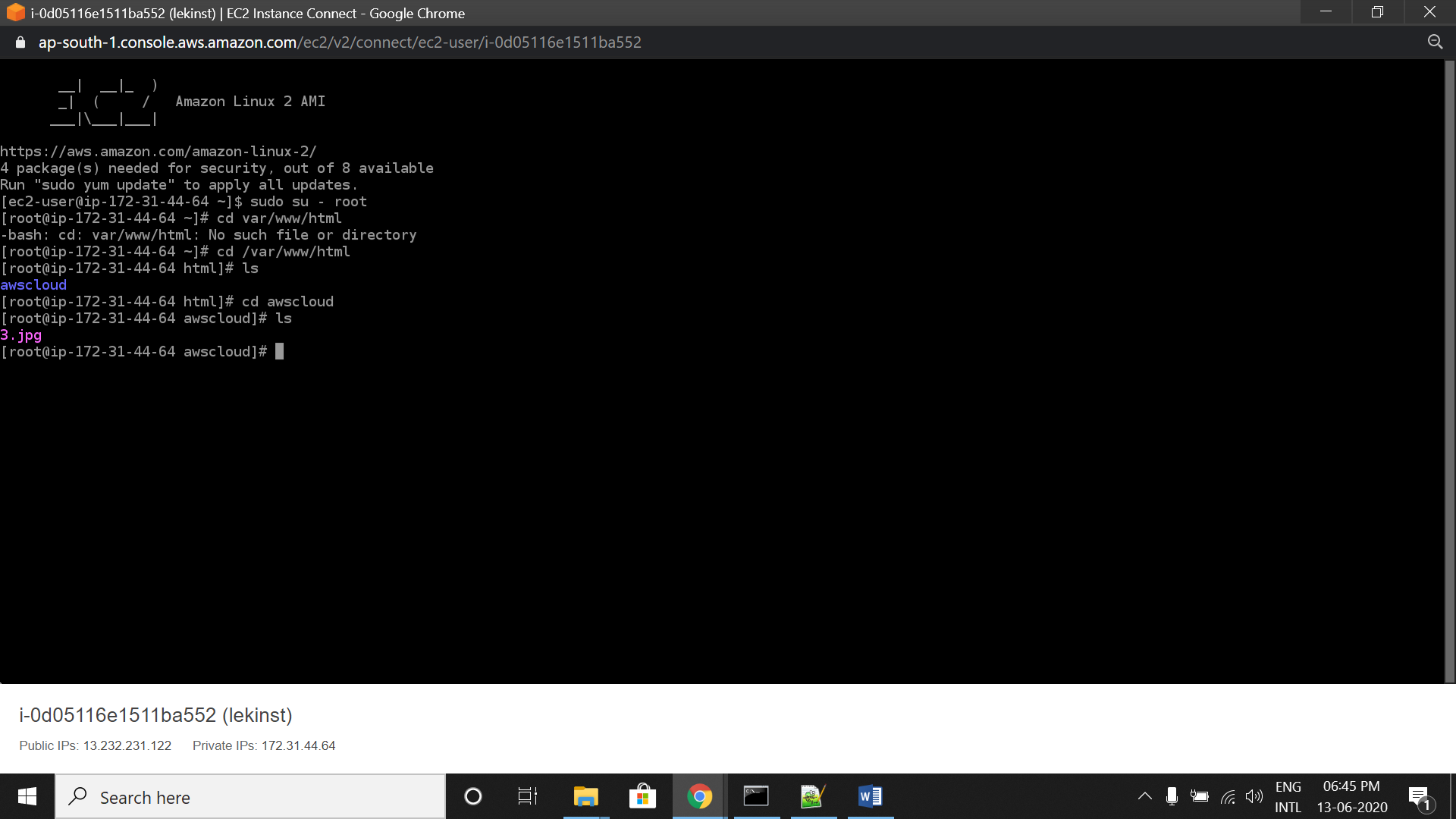

6. Copy the github repo code into /var/www/html

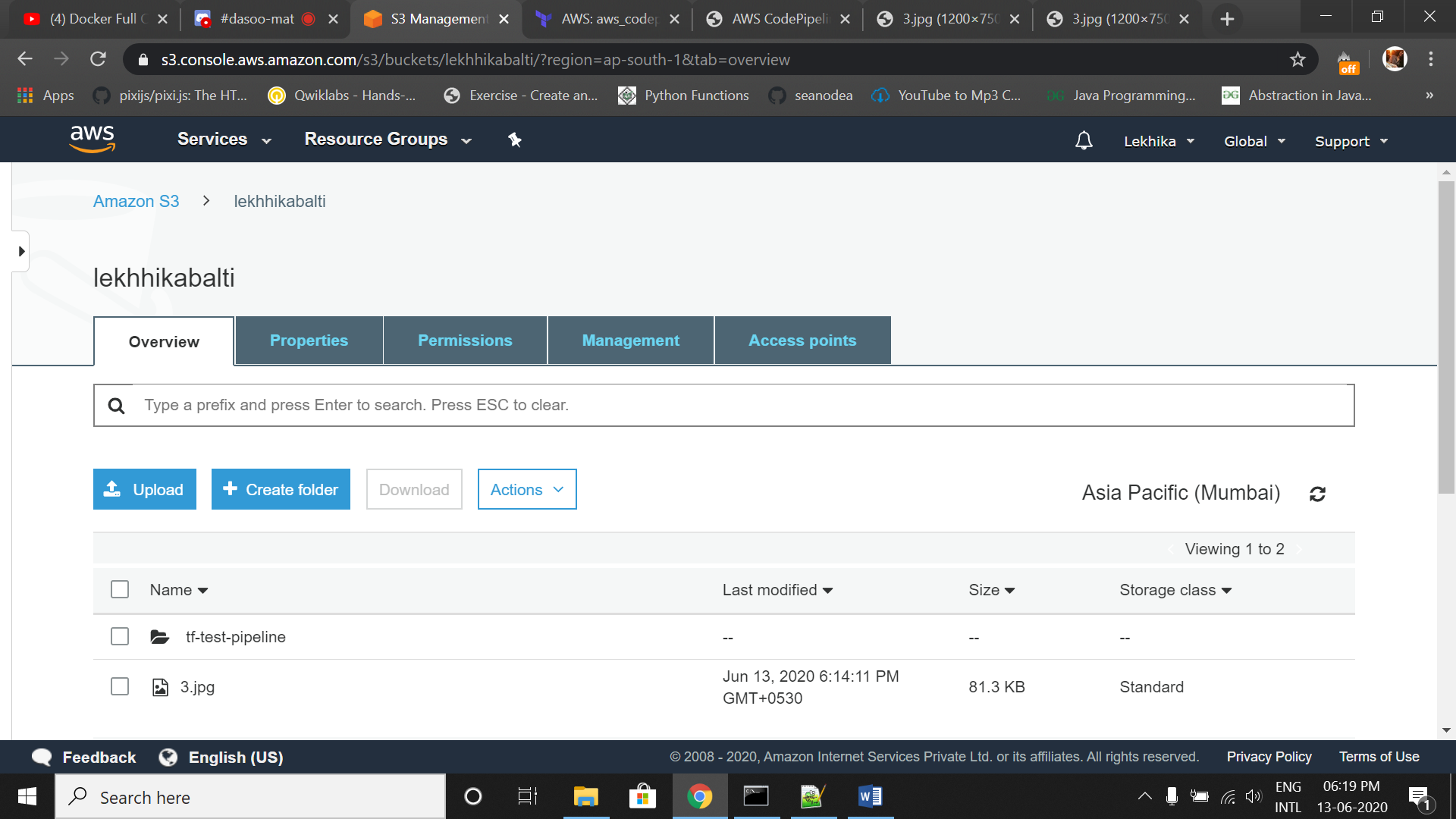

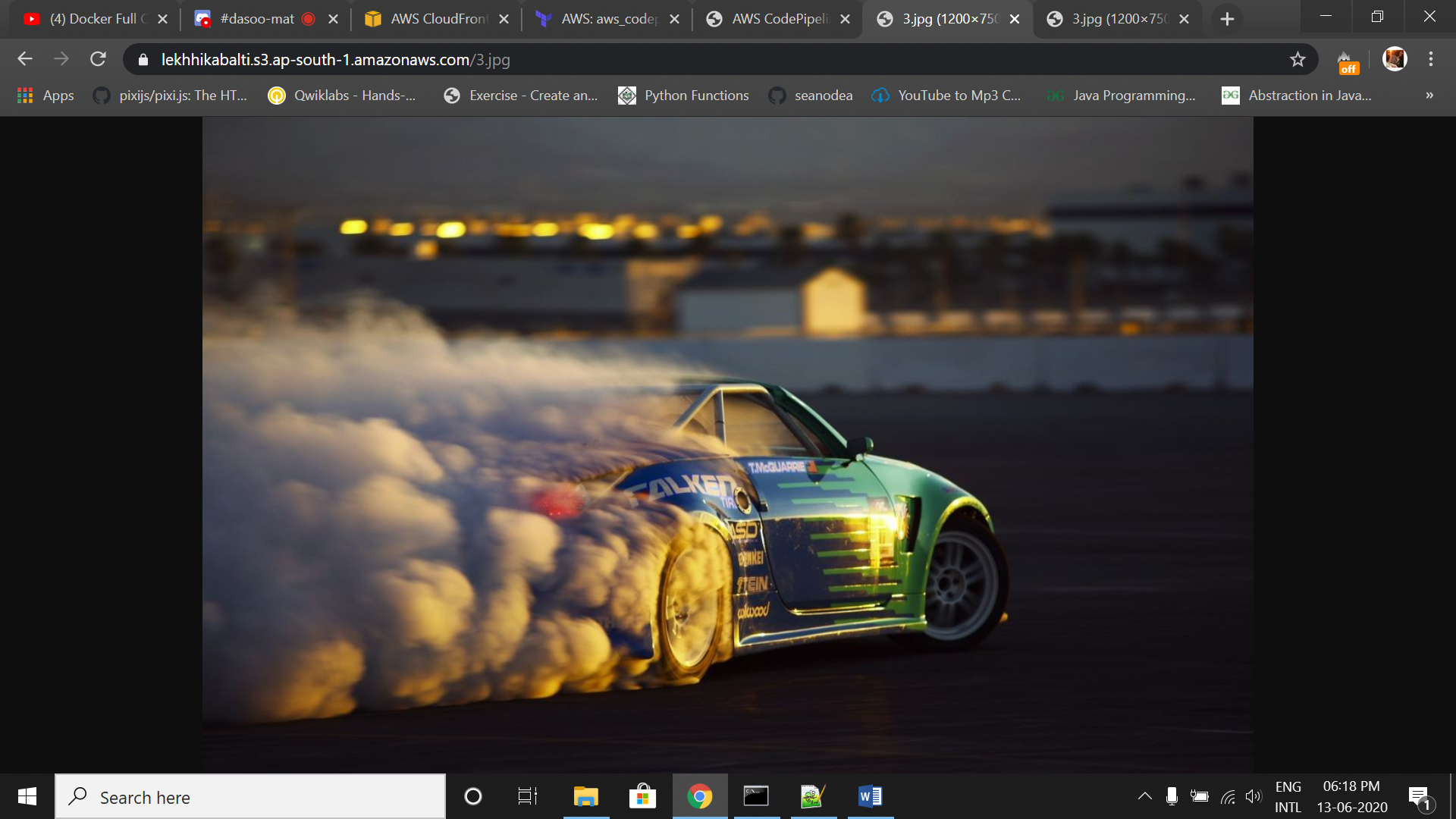

7. Create S3 bucket, and copy/deploy the images from github repo into the s3 bucket and change the permission to public readable.
#--------------------------------creating s3-------------------------------------
resource "aws_s3_bucket" "b" {
bucket = "lekhhikabalti"
acl = "private"
tags = {
Name = "My bucket"
}
}
locals {
s3_origin_id = "myS3Origin"
}
resource "aws_cloudfront_origin_access_identity" "origin_access_identity" {
comment = "Some comment"
}
resource "aws_instance" "lekinst" {
ami = "ami-0447a12f28fddb066"
instance_type = "t2.micro"
availability_zone = "ap-south-1a"
key_name = "taskkey1"
security_groups = [ "tasksg" ]
user_data = <<-EOF
#! /bin/bash
sudo yum install httpd -y
sudo systemctl start httpd
sudo systemctl enable httpd
sudo yum install git -y
mkfs.ext4 /dev/xvdf1
mount /dev/xvdf1 /var/www/html
cd /var/www/html
git clone https://github.com/lekhika13/awscloud.git
EOF
tags = {
Name = "lekinst"
}
}

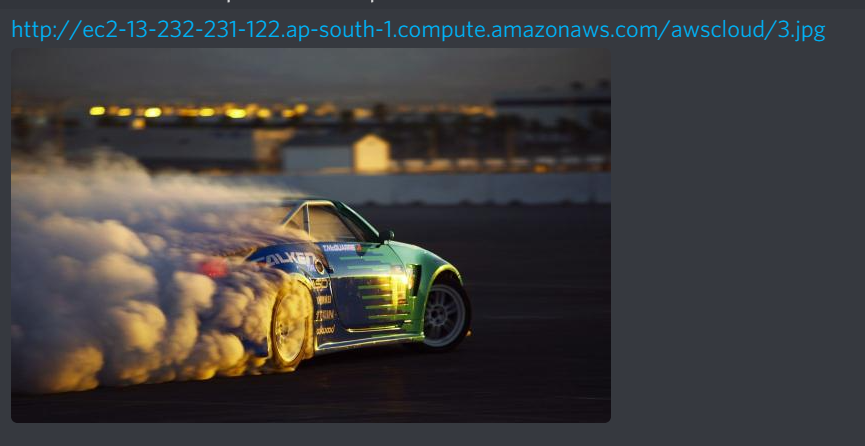

8 Create a Cloudfront using s3 bucket(which contains images) and use the Cloudfront URL to update in code in /var/www/html
HERE I HAVE USED CODEPIPELINE WITH TERRAFORM:
#———————————-creating code pipeline———————–
resource "aws_iam_role" "codepipeline_role" {
name = "test-role"
assume_role_policy = <<EOF
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"Service": "codepipeline.amazonaws.com"
},
"Action": "sts:AssumeRole"
}
]
}
EOF
}
resource "aws_iam_role_policy" "codepipeline_policy" {
name = "codepipeline_policy"
role = "${aws_iam_role.codepipeline_role.id}"
policy = <<EOF
{
"Version": "2012-10-17",
"Statement": [
{
"Effect":"Allow",
"Action": [
"s3:GetObject",
"s3:GetObjectVersion",
"s3:GetBucketVersioning",
"s3:PutObject"
],
"Resource": [
"${aws_s3_bucket.b.arn}",
"${aws_s3_bucket.b.arn}/*"
]
},
{
"Effect": "Allow",
"Action": [
"codebuild:BatchGetBuilds",
"codebuild:StartBuild"
],
"Resource": "*"
}
]
}
EOF
}
resource "aws_codepipeline" "codepipeline" {
name = "tf-test-pipeline"
role_arn = "${aws_iam_role.codepipeline_role.arn}"
artifact_store {
location = "${aws_s3_bucket.b.bucket}"
type = "S3"
}
stage {
name = "Source"
action {
name = "Source"
category = "Source"
owner = "ThirdParty"
provider = "GitHub"
version = "1"
output_artifacts = ["SourceArtifact"]
configuration = {
Owner = "lekhika13"
Repo = "awscloud"
Branch = "master"
OAuthToken = "bfd69100b7ebfc786b6f0e9256bbfe605193dbd8"
}
}
}
stage {
name = "Deploy"
action {
name = "Deploy"
category = "Deploy"
owner = "AWS"
provider = "S3"
input_artifacts = ["SourceArtifact"]
version = "1"
configuration = {
BucketName = "${aws_s3_bucket.b.bucket}"
Extract = "true"
}
}
}
}

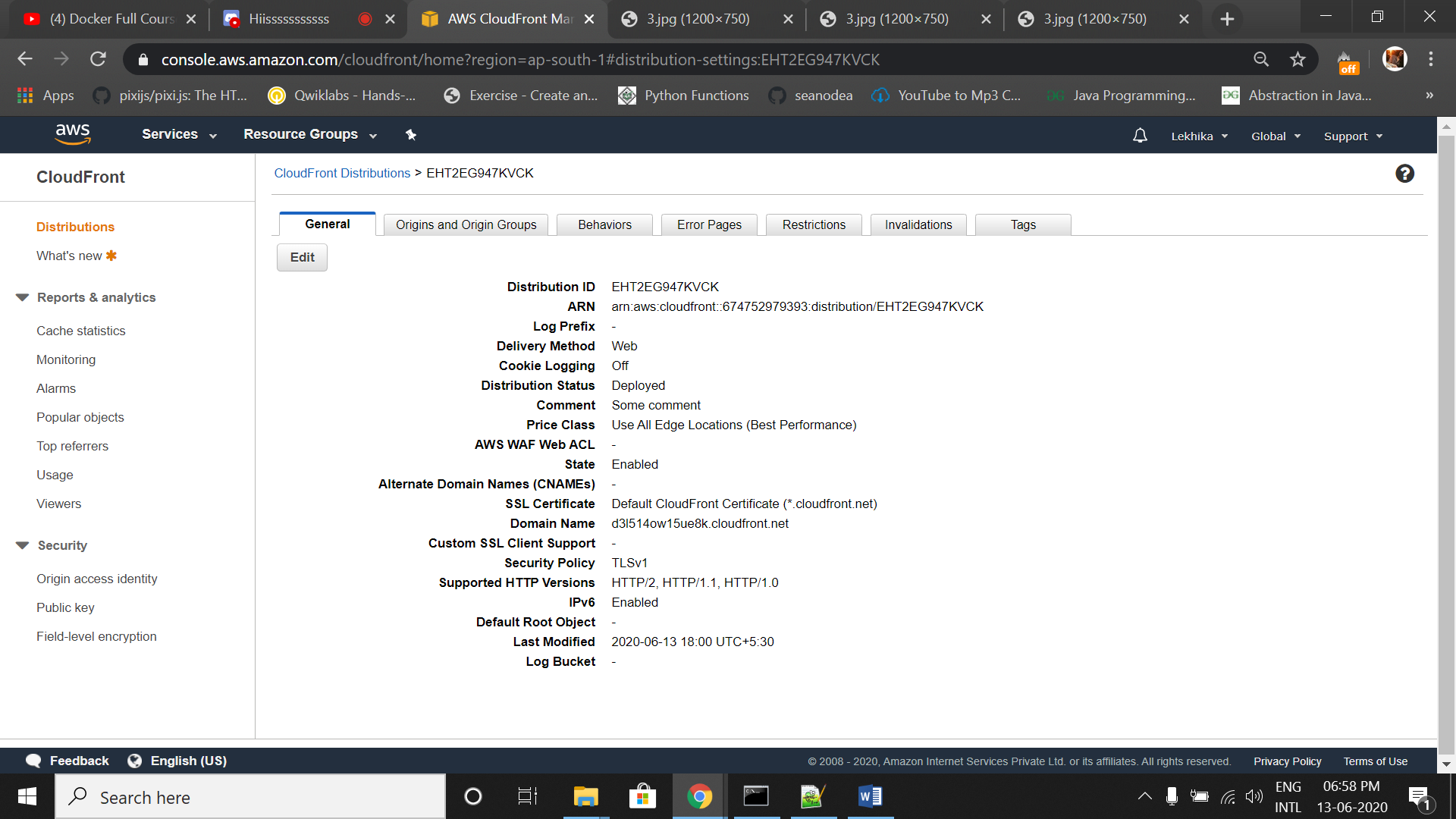

#———————————-creating web distribution———————
resource "aws_cloudfront_distribution" "s3_distribution" {
origin {
domain_name = "${aws_s3_bucket.b.bucket_regional_domain_name}"
origin_id = "${local.s3_origin_id}"
s3_origin_config {
origin_access_identity = "${aws_cloudfront_origin_access_identity.origin_access_identity.cloudfront_access_identity_path}"
}
}
enabled = true
is_ipv6_enabled = true
comment = "default_cache_behavior {
allowed_methods = ["DELETE", "GET", "HEAD", "OPTIONS", "PATCH", "POST", "PUT"]
cached_methods = ["GET", "HEAD"]
target_origin_id = "${local.s3_origin_id}"
forwarded_values {
query_string = false
cookies {
forward = "none"
}
}
viewer_protocol_policy = "allow-all"
}
restrictions {
geo_restriction {
restriction_type = "whitelist"
locations = ["US", "CA", "GB", "IN"]
}
}
tags = {
Environment = "production"
}
viewer_certificate {
cloudfront_default_certificate = true
}
}

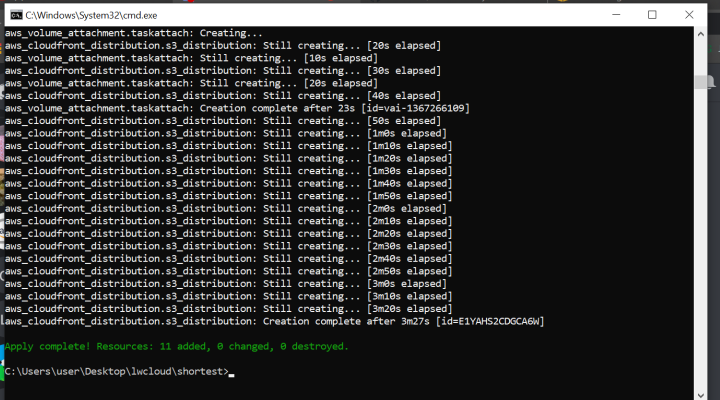

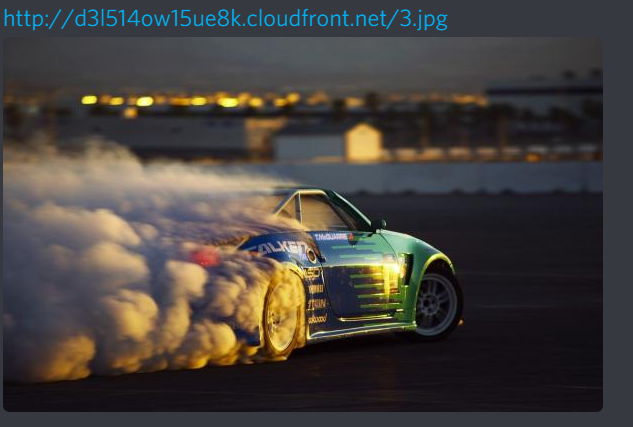

OUTPUTS:
